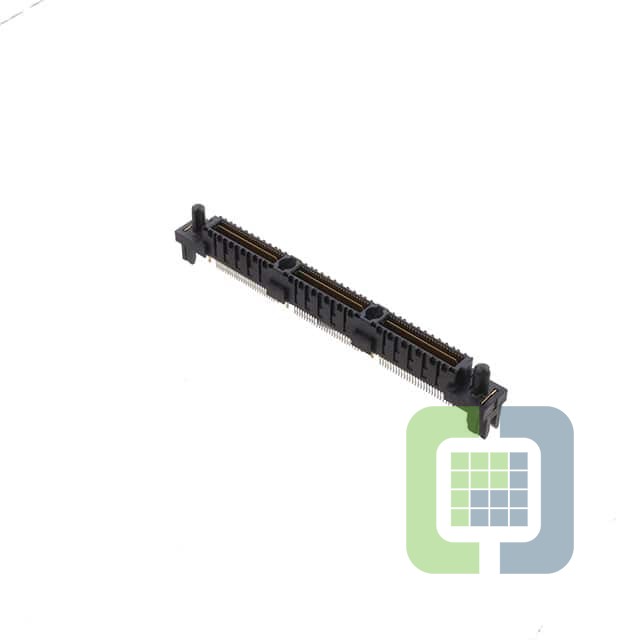

QMS-078-01-SL-D-EM2
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 156POS EDGE MNT GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
-
ECAD Model
- Share
In Stock: 207
Can ship immediately
Pricing:
- 1$22.22
- 10$21.42375
- 26$20.63048
- 52$20.23365
- 104$19.8368
- 260$19.44007
- 520$19.04333
Quote It
Technical Details
- Series:Power Q2™ QMS
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:156
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Board Edge, Straddle Mount
- Features:Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:-
- Height Above Board:-
