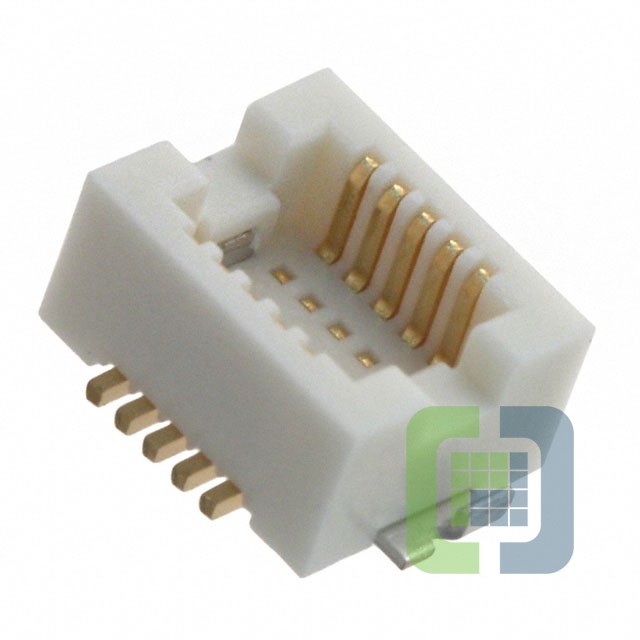

DF12B(3.0)-10DP-0.5V(86)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 10POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet DF12B(3.0)-10DP-0.5V(86) Datasheet
-
ECAD Model
- Share
In Stock: 481
Can ship immediately
Pricing:
- 1$0.7
- 1,000$0.3906
- 2,000$0.3801
- 3,000$0.3591
Quote It
Technical Details
- Series:DF12
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Last Time Buy
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:10
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:8.00µin (0.203µm)
- Mated Stacking Heights:3mm
- Height Above Board:0.091" (2.30mm)
