0716612511
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant

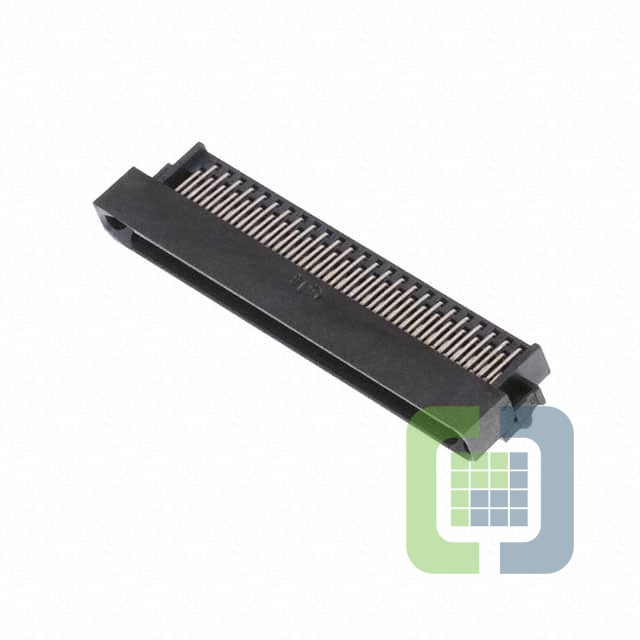

- DescriptionCONN PLUG 100POS R/A GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 0716612511 Datasheet
-
ECAD Model
- Share
In Stock: 197
Can ship immediately
Pricing:
- 1$10.87
- 10$10.393
- 192$8.73995
- 576$7.32267
- 1,152$6.47229
Quote It
Technical Details
- Series:EBBI 71661
- Package:Tray
- Part Status:Obsolete
- Connector Type:Plug, Center Strip Contacts
- Number of Positions:100
- Pitch:0.050" (1.27mm)
- Number of Rows:2
- Mounting Type:Through Hole, Right Angle
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:-
- Height Above Board:0.295" (7.50mm)
