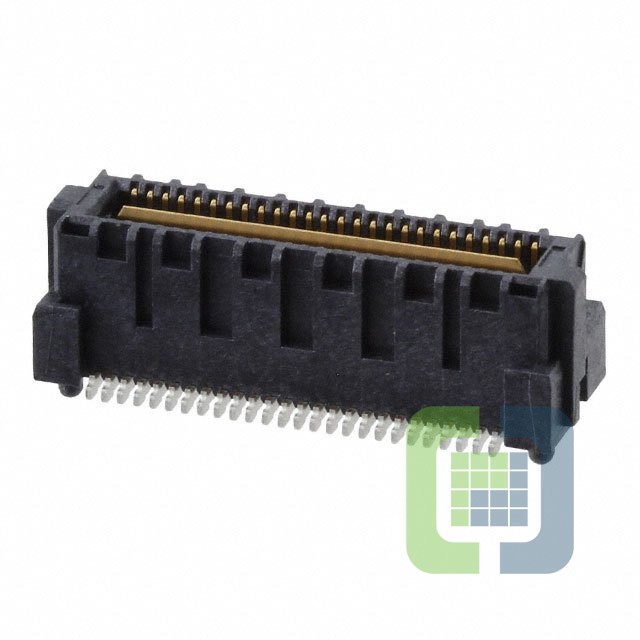

QMS-026-05.75-L-D-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 52POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QMS-026-05.75-L-D-A Datasheet
-
ECAD Model
- Share
In Stock: 488
Can ship immediately
Pricing:
- 1$11.8
- 10$11.10973
- 25$10.79707
- 56$10.06825
- 112$9.72099
- 280$9.02666
- 504$8.85305
- 1,008$8.50589
Quote It
Technical Details
- Series:Power Q2™ QMS
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:52
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:10mm, 12mm
- Height Above Board:0.227" (5.76mm)
