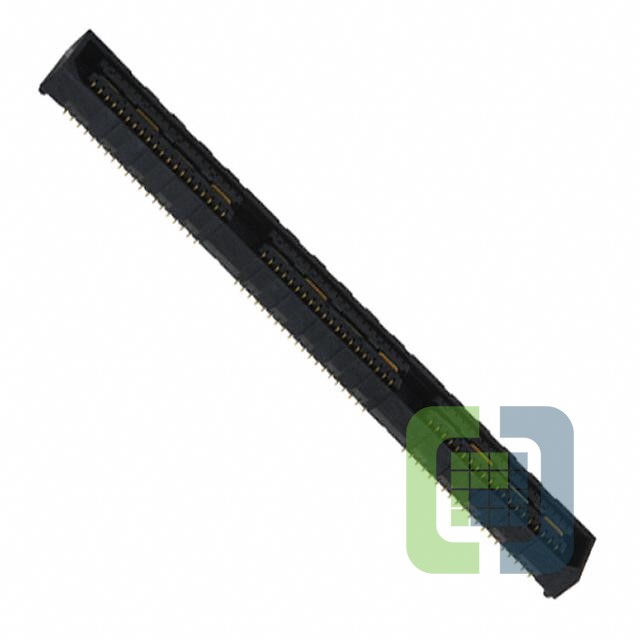

QSE-060-01-L-D-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QSE-060-01-L-D-A Datasheet
-
ECAD Model
- Share
In Stock: 650
Can ship immediately
Pricing:
- 1$11.91
- 10$11.20819
- 42$10.89281
- 84$10.15748
- 126$9.80718
- 252$9.10663
- 504$8.93152
- 1,008$8.58126
Quote It
Technical Details
- Series:Q Strip® QSE
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:120
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
- Height Above Board:0.128" (3.25mm)
