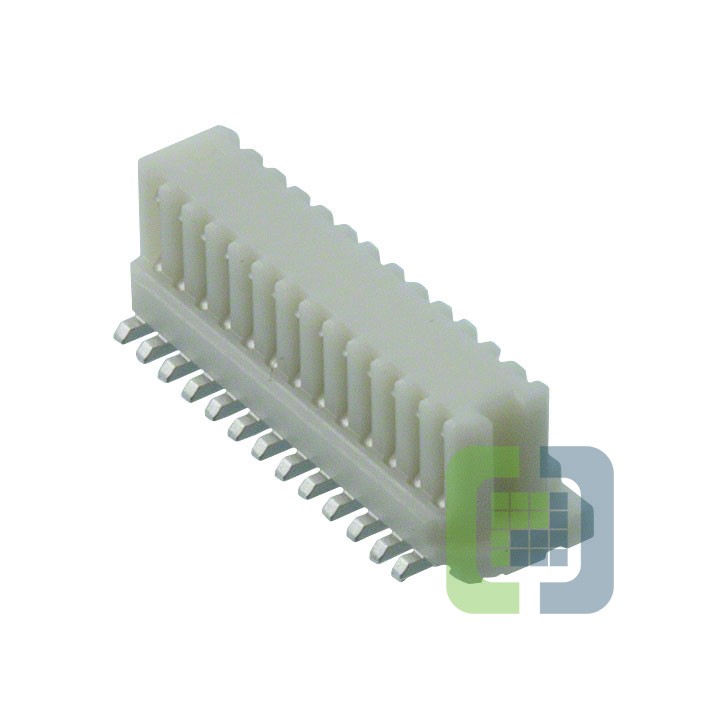

0524652671
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 26POS SMD TIN
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 0524652671 Datasheet
-
ECAD Model
- Share
In Stock: 115
Can ship immediately
Pricing:
- 1$2.2
- 1,000$1.21965
- 2,000$1.179
- 3,000$1.13834
- 5,000$1.08142
Quote It
Technical Details
- Series:52465
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:26
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:-
- Contact Finish:Tin
- Contact Finish Thickness:120.0µin (3.05µm)
- Mated Stacking Heights:4.5mm, 5.65mm, 7mm
- Height Above Board:0.140" (3.55mm)
