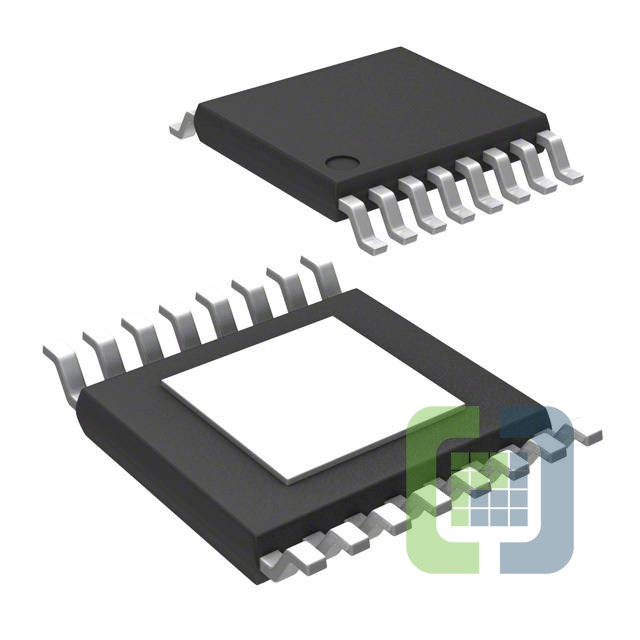

A6986F5V
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK 5V 1.5A 16HTSSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet A6986F5V Datasheet
-
ECAD Model
- Share
In Stock: 1,026
Can ship immediately
Pricing:
- 1$3.2
- 96$2.7175
- 192$2.35516
- 576$2.00489
- 1,056$1.69088
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Fixed
- Number of Outputs:1
- Voltage - Input (Min):4V
- Voltage - Input (Max):38V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Current - Output:1.5A
- Frequency - Switching:250kHz ~ 2MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:16-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package:16-HTSSOP
