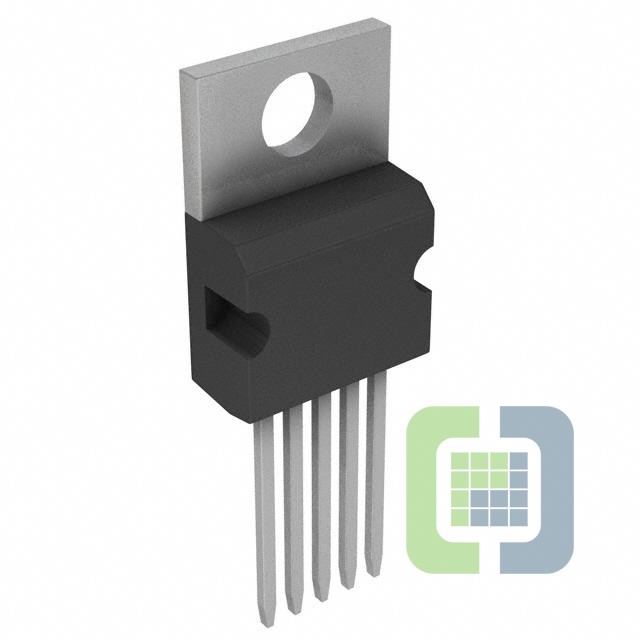

LM2941T
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 1A TO220-5
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 1,512
Can ship immediately
Pricing:
- 1$2.35
- 10$2.10971
- 45$1.99009
- 135$1.69558
- 540$1.39306
- 1,035$1.15425
- 2,520$1.07465
- 5,040$1.03485
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Not For New Designs
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):26V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):20V
- Voltage Dropout (Max):1V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):10 mA
- Current - Supply (Max):15 mA
- PSRR:-
- Control Features:Enable
- Protection Features:Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Through Hole
- Package / Case:TO-220-5
- Supplier Device Package:TO-220-5
