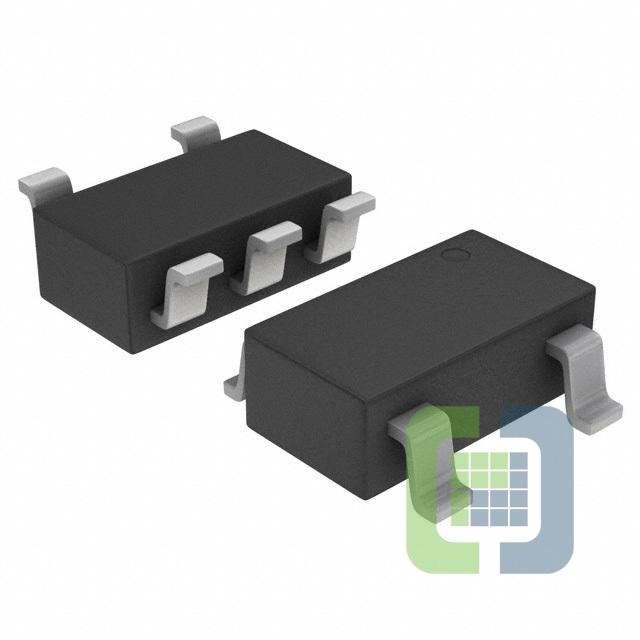

NCP700BSN30T1G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3V 200MA 5TSOP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP700BSN30T1G Datasheet
-
ECAD Model
- Share
In Stock: 567,121,163
Can ship immediately
Pricing:
- 1$0.62
- 3,000$0.22693
- 6,000$0.21128
- 15,000$0.20345
- 30,000$0.19563
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.19V @ 200mA
- Current - Output:200mA
- Current - Quiescent (Iq):110 µA
- Current - Supply (Max):130 µA
- PSRR:82dB (1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package:5-TSOP
