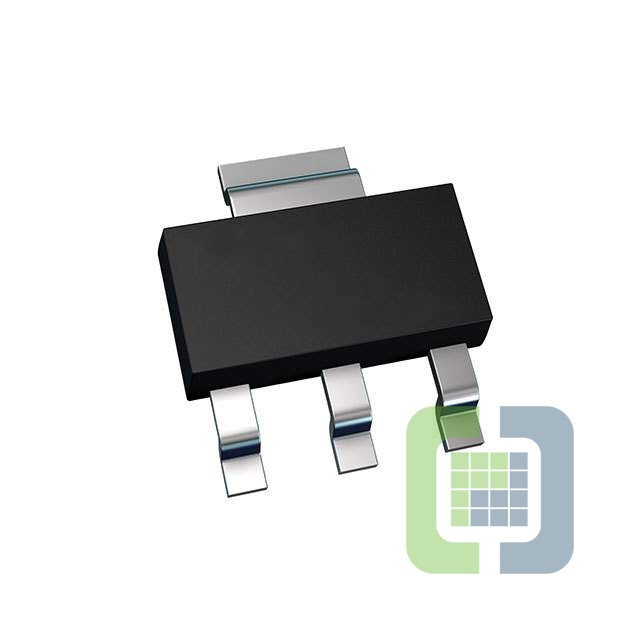

AP2114H-1.8TRG1
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.8V 1A SOT223
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AP2114H-1.8TRG1 Datasheet
-
ECAD Model
- Share
In Stock: 188
Can ship immediately
Pricing:
- 1$0.37
- 4,000$0.09983
- 8,000$0.09378
- 12,000$0.08773
- 28,000$0.08047
- 100,000$0.07563
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):1.8V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.7V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):75 µA
- Current - Supply (Max):-
- PSRR:68dB (100Hz ~ 1kHz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:TO-261-4, TO-261AA
- Supplier Device Package:SOT-223
