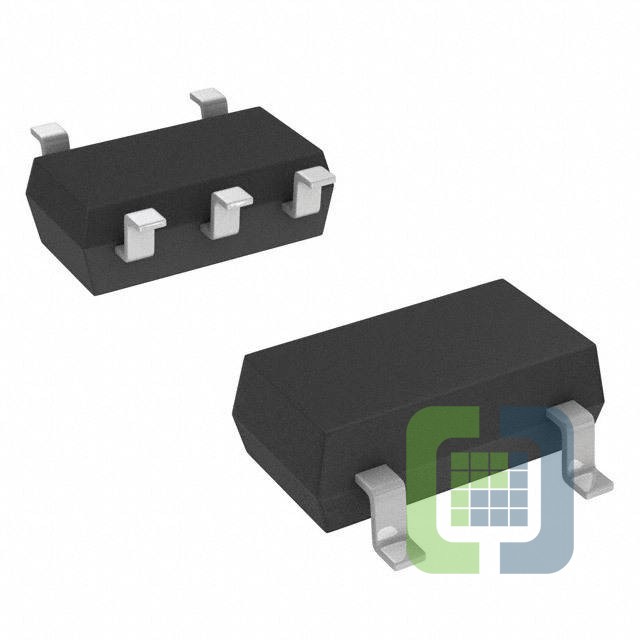

NJM2870F48-TE1
New Japan Radio (NJR)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 4.8V 150MA SOT23-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NJM2870F48-TE1 Datasheet
-
ECAD Model
- Share
In Stock: 112
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):14V
- Voltage - Output (Min/Fixed):4.8V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.2V @ 60mA
- Current - Output:150mA
- Current - Quiescent (Iq):300 µA
- Current - Supply (Max):-
- PSRR:60dB (1kHz)
- Control Features:Enable
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:SC-74A, SOT-753
- Supplier Device Package:SOT-23-5 (MTP5)
