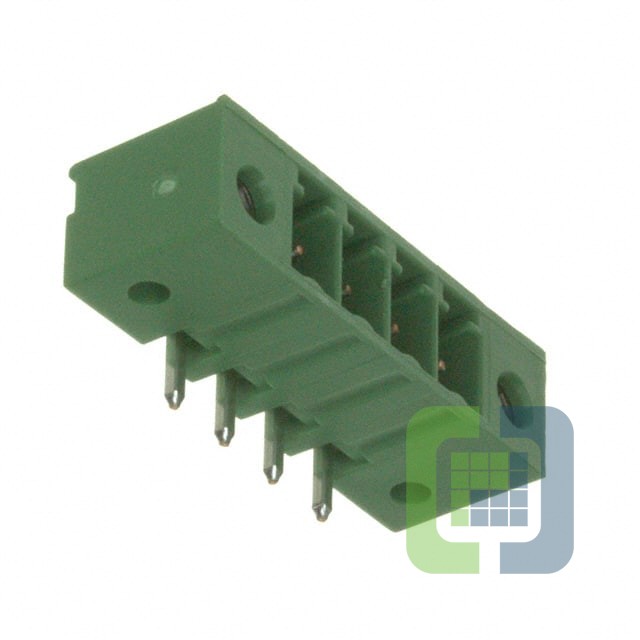

284541-4
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTERM BLOCK HDR 4POS 90DEG 3.81MM
- CategoryTerminal Blocks - Headers, Plugs and Sockets
- Datasheet 284541-4 Datasheet
-
ECAD Model
- Share
In Stock: 114
Can ship immediately
Pricing:
- 1$1.69
- 10$1.27666
- 25$1.18341
- 50$1.06409
- 100$1.03813
- 250$0.90841
- 500$0.83054
- 1,000$0.75267
- 5,000$0.66183
Quote It
Technical Details
- Series:Buchanan
- Package:Bulk
- Part Status:Discontinued at Digi-Key
- Type:Header, Male Pins, Shrouded (4 Side)
- Number of Positions:4
- Positions Per Level:4
- Number of Levels:1
- Pitch:0.150" (3.81mm)
- Header Orientation:90°, Right Angle
- Plug Wire Entry:-
- Termination Style:Solder
- Mounting Type:Through Hole
- Current - IEC:-
- Voltage - IEC:-
- Current - UL:11 A
- Voltage - UL:300 V
- Wire Gauge or Range - AWG:-
- Wire Gauge or Range - mm²:-
- Color:Green
- Operating Temperature:-40°C ~ 110°C
- Contact Mating Finish:Tin
- Features:Mating Flange
