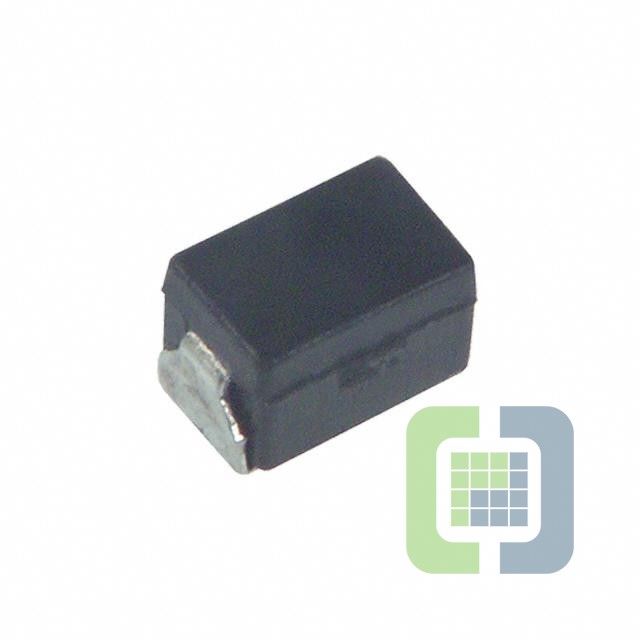

ELJ-PC1R0MF3
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1UH 890MA 120 MOHM SMD
- CategoryFixed Inductors
- Datasheet ELJ-PC1R0MF3 Datasheet
-
ECAD Model
- Share
In Stock: 189
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:PC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:1 µH
- Tolerance:±20%
- Current Rating (Amps):890 mA
- Current - Saturation (Isat):400mA
- Shielding:Unshielded
- DC Resistance (DCR):120mOhm
- Q @ Freq:-
- Frequency - Self Resonant:180MHz
- Ratings:-
- Operating Temperature:-20°C ~ 85°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1008 (2520 Metric)
- Supplier Device Package:1008 (2520 Metric)
- Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max):0.071" (1.80mm)
