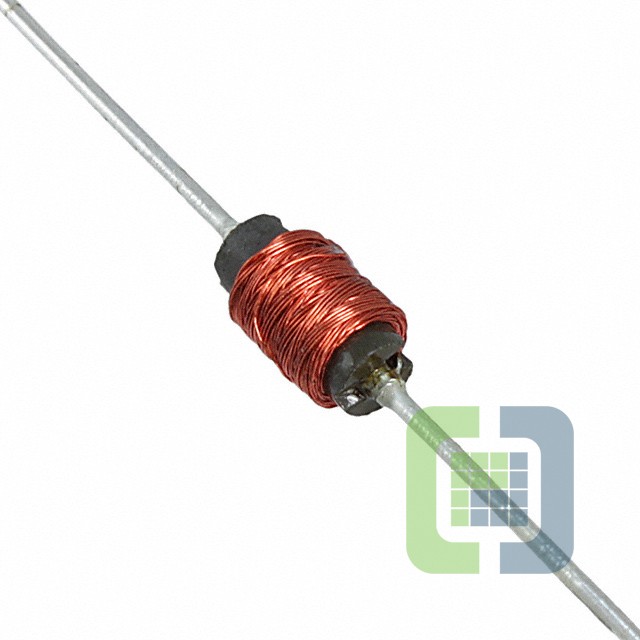

70F224AI-RC
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 220UH 114MA 11.5OHM TH
- CategoryFixed Inductors
- Datasheet 70F224AI-RC Datasheet
-
ECAD Model
- Share
In Stock: 187
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:70F
- Package:Bulk
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Iron
- Inductance:220 µH
- Tolerance:±5%
- Current Rating (Amps):114 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):11.5Ohm Max
- Q @ Freq:46 @ 790kHz
- Frequency - Self Resonant:2.5MHz
- Ratings:-
- Operating Temperature:-55°C ~ 105°C
- Inductance Frequency - Test:790 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Axial
- Supplier Device Package:-
- Size / Dimension:0.170" Dia x 0.250" L (4.32mm x 6.35mm)
- Height - Seated (Max):-
