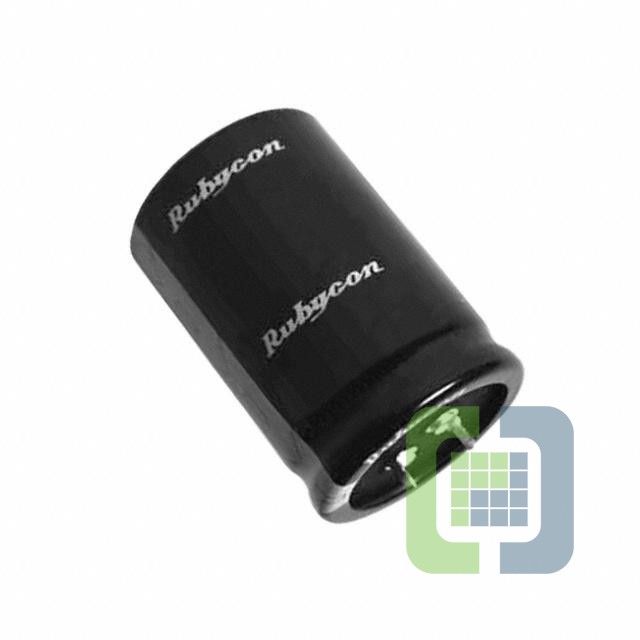

400MXK180MEFCSN22X30
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 180UF 20% 400V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet 400MXK180MEFCSN22X30 Datasheet
-
ECAD Model
- Share
In Stock: 104
Can ship immediately
Pricing:
- 1$3.12805
- 10$2.81596
- 200$2.12757
- 600$1.75212
- 1,000$1.62696
- 2,600$1.59567
Quote It
Technical Details
- Series:MXK
- Package:Tray
- Part Status:Active
- Capacitance:180 µF
- Tolerance:±20%
- Voltage - Rated:400 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.19 A @ 120 Hz
- Ripple Current @ High Frequency:1.666 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.866" Dia (22.00mm)
- Height - Seated (Max):1.260" (32.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
