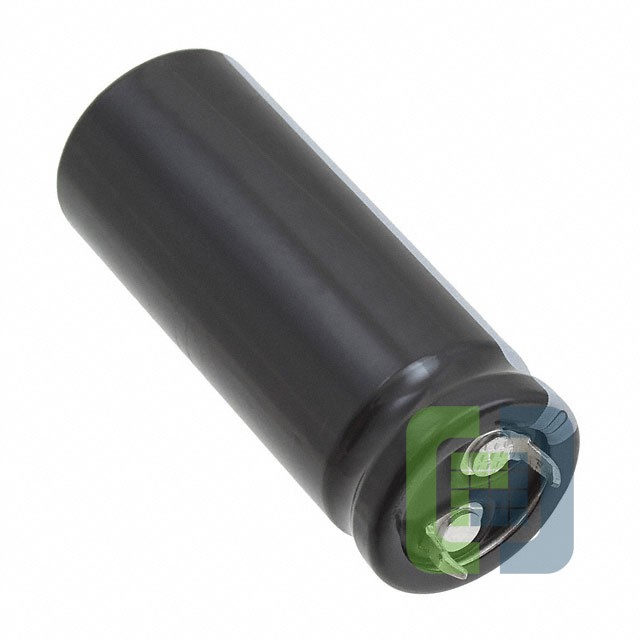

LKX2D561MESY50
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 560UF 20% 200V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet LKX2D561MESY50 Datasheet
-
ECAD Model
- Share
In Stock: 186
Can ship immediately
Pricing:
- 1$3.14608
- 250$2.99624
Quote It
Technical Details
- Series:LKX
- Package:Bulk
- Part Status:Active
- Capacitance:560 µF
- Tolerance:±20%
- Voltage - Rated:200 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:Audio
- Ripple Current @ Low Frequency:1.6 A @ 120 Hz
- Ripple Current @ High Frequency:2.4 A @ 50 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.787" Dia (20.00mm)
- Height - Seated (Max):2.047" (52.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
