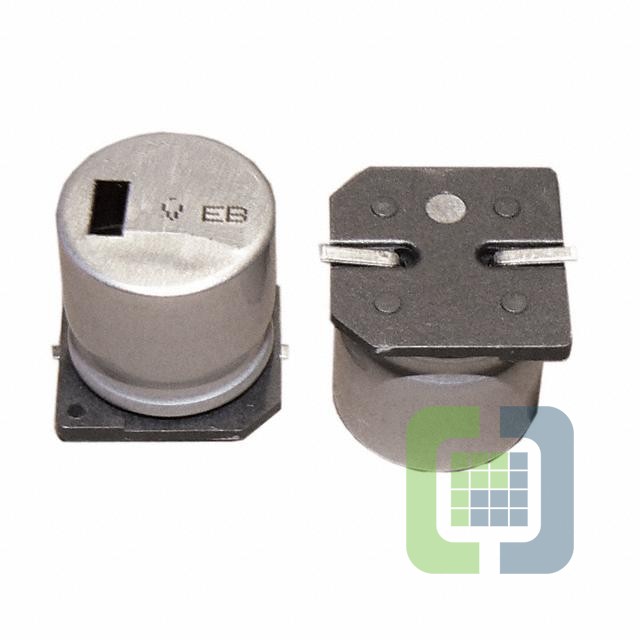

AEB476M2EU44T-F
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 47UF 20% 250V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet AEB476M2EU44T-F Datasheet
-
ECAD Model
- Share
In Stock: 113
Can ship immediately
Pricing:
- 1$3.14953
- 150$3.08667
Quote It
Technical Details
- Series:AEB
- Package:Tape & Reel (TR)
- Part Status:Active
- Capacitance:47 µF
- Tolerance:±20%
- Voltage - Rated:250 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:390.5 mA @ 120 Hz
- Ripple Current @ High Frequency:710 mA @ 100 kHz
- Impedance:700 mOhms
- Lead Spacing:-
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):0.846" (21.50mm)
- Surface Mount Land Size:0.669" L x 0.669" W (17.00mm x 17.00mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
