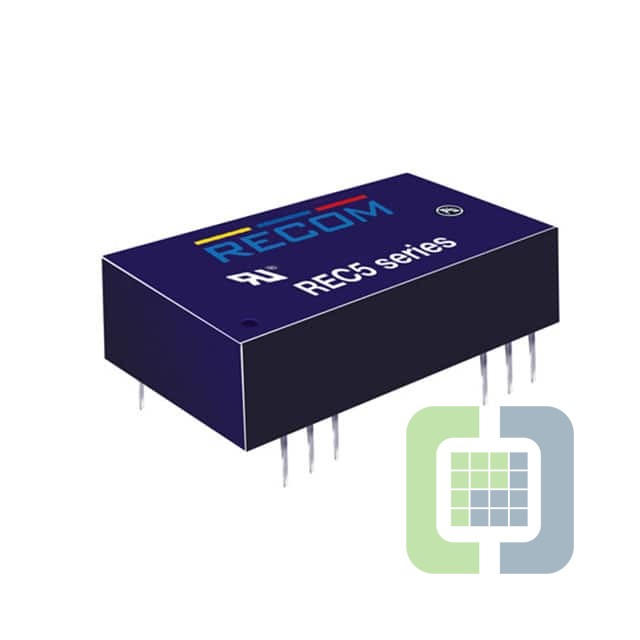

REC5-2415DRWZ/H/B/M

Technical Details

• Series:ECONOLINE REC5 (5W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):9V
• Voltage - Input (Max):36V
• Voltage - Output 1:15V
• Voltage - Output 2:-15V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):170mA, 170mA
• Power (Watts):5 W

• Voltage - Isolation:1.6 kV
• Applications:ITE (Commercial)
• Features:SCP
• Operating Temperature:-40°C ~ 75°C
• Efficiency:85%
• Mounting Type:Through Hole
• Package / Case:24-DIP Module, 12 Leads
• Size / Dimension:1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
