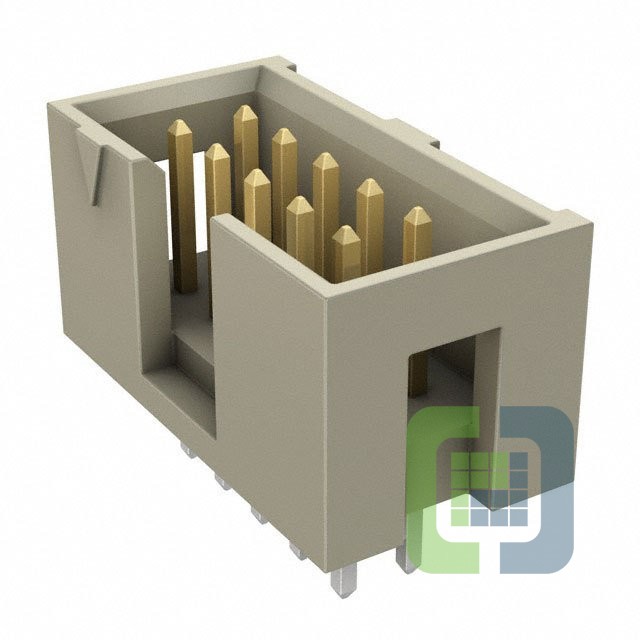

HTST-105-02-L-D
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 10POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet HTST-105-02-L-D Datasheet
-
ECAD Model
- Share
In Stock: 228
Can ship immediately
Pricing:
- 1$2.4
- 10$1.98934
- 100$1.49184
- 500$1.2432
- 1,000$1.10231
- 5,000$1.036
- 10,000$1.01528
Quote It
Technical Details
- Series:Flex Stack, HTST
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:10
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.250" (6.35mm)
- Contact Length - Post:0.165" (4.19mm)
- Overall Contact Length:0.530" (13.46mm)
- Insulation Height:0.350" (8.89mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:Keying Slot
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):3.4A per Contact
- Voltage Rating:-
