SSM-104-L-DV-LC

Samtec, Inc.

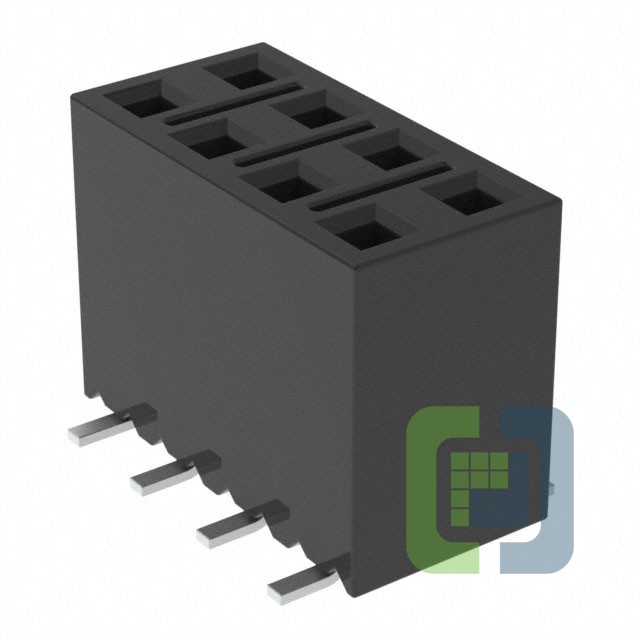

SSM-104-L-DV-LC Gallery image caption
In Stock: 181

Can ship immediately

Pricing:
  • 1$2.55
  • 10$2.16089
  • 100$1.66978
  • 500$1.37512
  • 1,000$1.27688
  • 5,000$1.20323

Quote It

Technical Details

  • Series:SSM
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle, Pass Through
  • Contact Type:Female Socket
  • Style:Board to Board or Cable
  • Number of Positions:8
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Insulation Color:Black
  • Insulation Height:0.290" (7.37mm)
  • Contact Length - Post:-
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:-
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Board Lock
  • Current Rating (Amps):5.2A per Contact
  • Voltage Rating:405VAC, 572VDC
