ESQ-108-23-G-S

Samtec, Inc.

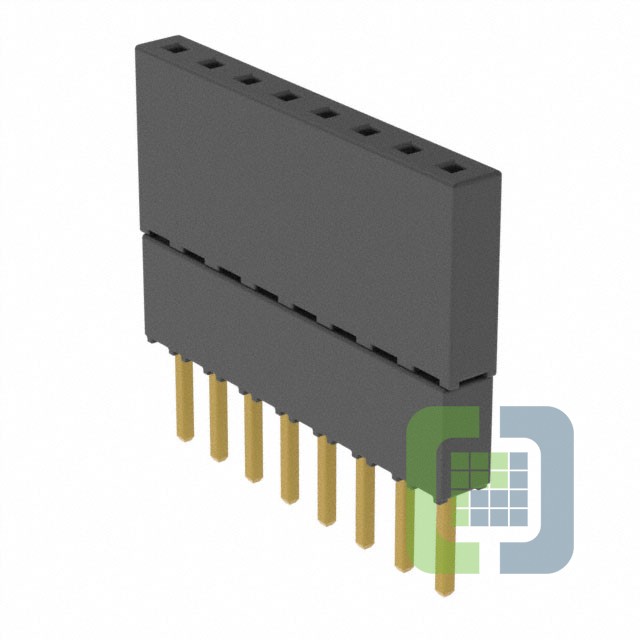

ESQ-108-23-G-S Gallery image caption
In Stock: 274

Can ship immediately

Pricing:
  • 1$2.59
  • 10$2.14569
  • 100$1.60927
  • 500$1.34106
  • 1,000$1.18907
  • 5,000$1.11755

Quote It

Technical Details

  • Series:ESQ
  • Package:Tube
  • Part Status:Active
  • Connector Type:Elevated Socket
  • Contact Type:Forked
  • Style:Board to Board
  • Number of Positions:8
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:20.0µin (0.51µm)
  • Insulation Color:Black
  • Insulation Height:0.535" (13.60mm)
  • Contact Length - Post:0.190" (4.83mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Gold
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):5.7A per Contact
  • Voltage Rating:550VAC
