HLE-105-02-L-DV

Samtec, Inc.

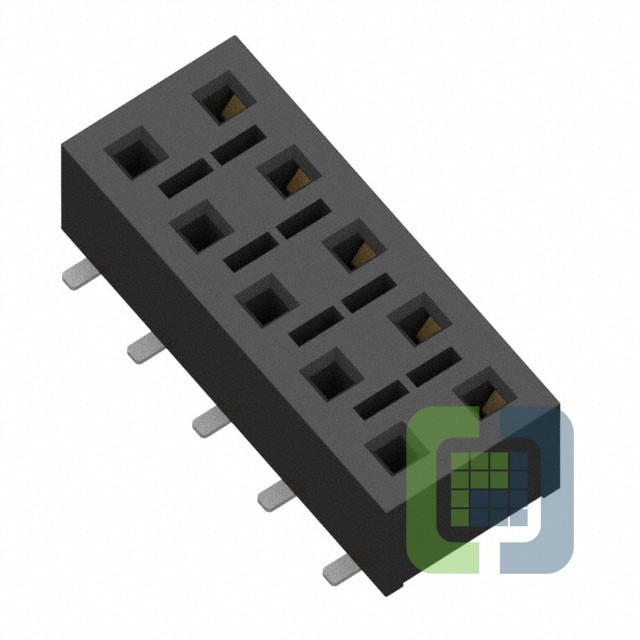

HLE-105-02-L-DV Gallery image caption
In Stock: 504

Can ship immediately

Pricing:
  • 1$2.56
  • 45$1.98975
  • 135$1.59185
  • 540$1.32654
  • 1,035$1.1762
  • 5,040$1.10546

Quote It

Technical Details

  • Series:HLE
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:10
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Insulation Color:Black
  • Insulation Height:0.144" (3.66mm)
  • Contact Length - Post:-
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:-
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):4.1A per Contact
  • Voltage Rating:400VAC
