SMH-106-02-G-D

Samtec, Inc.

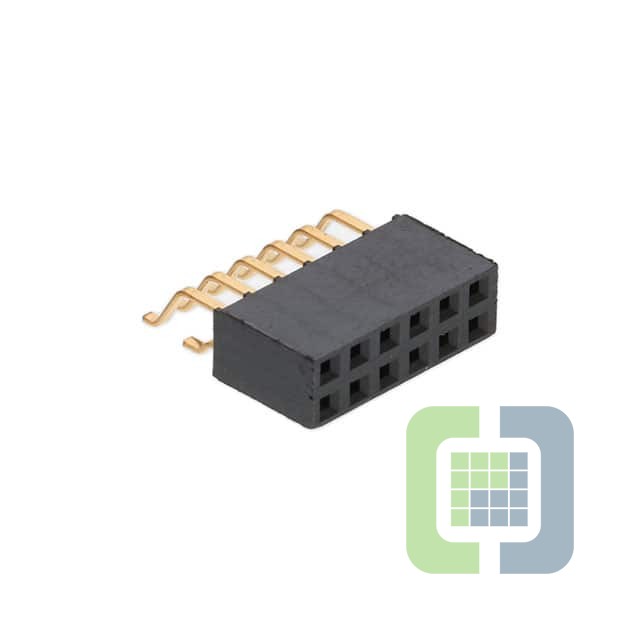

SMH-106-02-G-D Gallery image caption
In Stock: 207

Can ship immediately

Pricing:
  • 1$2.85
  • 35$2.30534
  • 105$1.86623
  • 525$1.53689
  • 1,015$1.42711
  • 5,005$1.34478

Quote It

Technical Details

  • Series:SMH
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Forked
  • Style:Board to Board
  • Number of Positions:12
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:20.0µin (0.51µm)
  • Insulation Color:Black
  • Insulation Height:0.195" (4.95mm)
  • Contact Length - Post:-
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):-
  • Voltage Rating:-
