3189CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

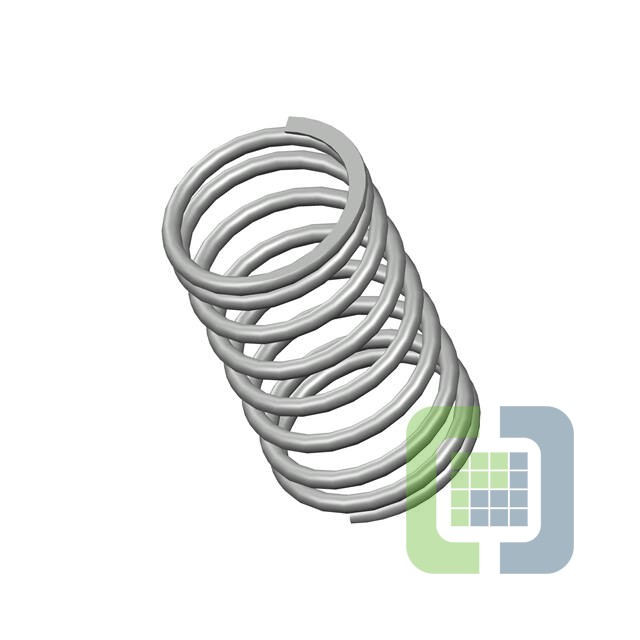

- DescriptionCOMP O= .921,L= 1.59,W= .080
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,836
Can ship immediately
Pricing:
- 1$4.1
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.080" (2.03mm)
- Diameter - Outside:0.921" (23.39mm)
- Diameter - Inside:0.761" (19.33mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.590" (40.39mm)
- Max Load:-
- Rate:15.0 lbs/in
- End Style:Closed & Ground
- Finish:Gold Iridite
