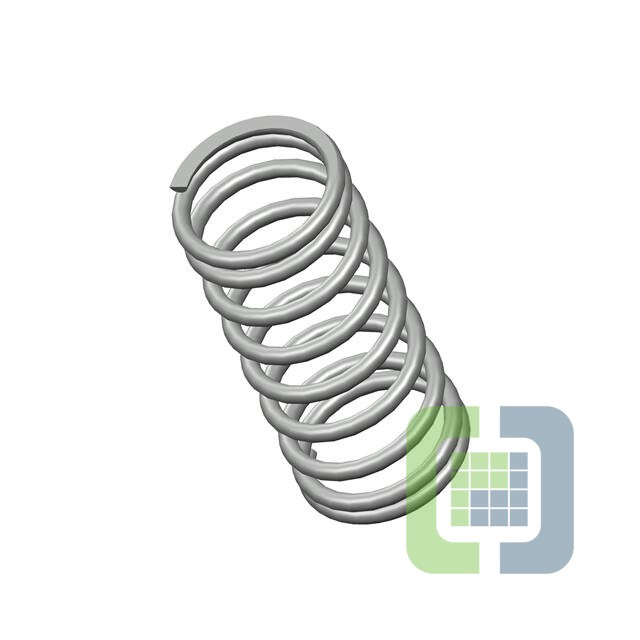

869CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O=1.188,L=2.75,W=.120
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 372
Can ship immediately
Pricing:
- 1$4.89
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Hard Drawn
- Wire Diameter:0.120" (3.05mm)
- Diameter - Outside:1.188" (30.18mm)
- Diameter - Inside:0.948" (24.08mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.750" (69.85mm)
- Max Load:-
- Rate:35.0 lbs/in
- End Style:Closed
- Finish:Zinc
