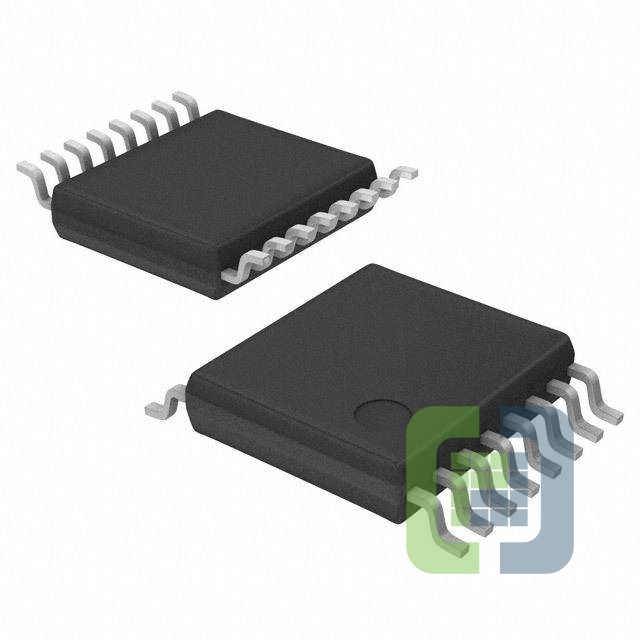

LV5749NV-TLM-E
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCHING REGULATOR/CONTROLLER,
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LV5749NV-TLM-E Datasheet
-
ECAD Model
- Share
In Stock: 12,153
Can ship immediately
Pricing:
- 1$1.39
- 2,000$1.34379
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8V ~ 42V
- Frequency - Switching:125kHz
- Duty Cycle (Max):85%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-LSSOP (0.173", 4.40mm Width)
- Supplier Device Package:16-SSOP
