TPS53624RHAT
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTPS53624 DUAL PHASE D-CAP BUCK R
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 112
Can ship immediately
Pricing:
- 1$2.47
- 250$2.47
- 500$2.21631
- 1,250$1.86918
Quote It
Technical Details
- Series:D-CAP+™, Eco-Mode™
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):3V ~ 28V
- Frequency - Switching:200kHz, 300kHz, 400kHz, 500kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, On Time Control, Phase Control, Power Good, Slew Control
- Operating Temperature:-10°C ~ 105°C (TA)
- Mounting Type:Surface Mount

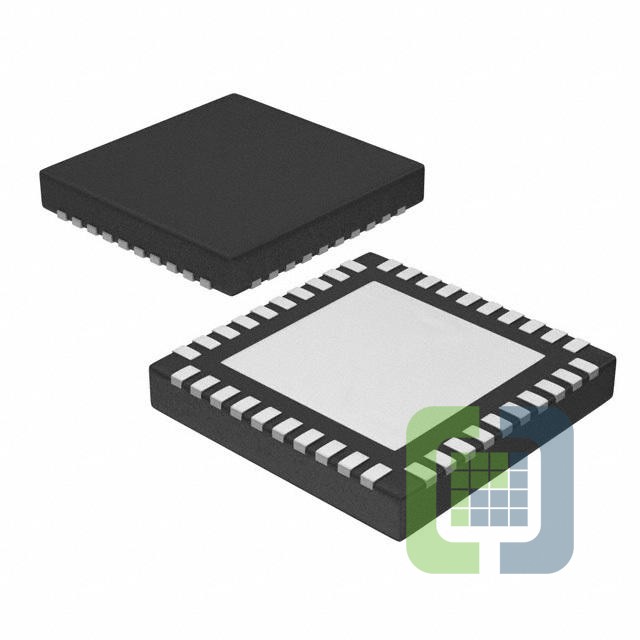

- Package / Case:40-VFQFN Exposed Pad
- Supplier Device Package:40-VQFN (6x6)
