TPS40091PWR
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTPS40091 4 CHANNEL MULTIPHASE BU
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 6,194
Can ship immediately
Pricing:
- 1$2.48
- 2,000$2.22376
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:PWM Signal
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:4
- Output Phases:4
- Voltage - Supply (Vcc/Vdd):4.5V ~ 15V
- Frequency - Switching:100kHz ~ 1.2MHz
- Duty Cycle (Max):87.5%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

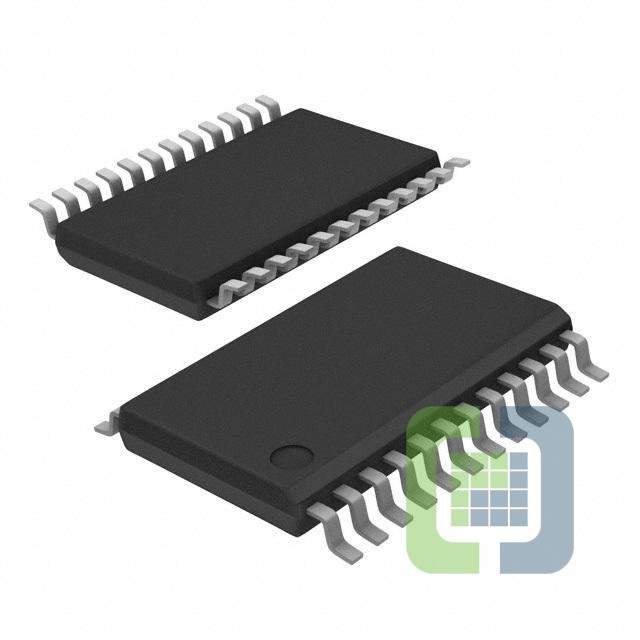

- Package / Case:24-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:24-TSSOP
