UCC2806NG4
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- Description0.5A, 1000KHZ BICMOS, PDIP16
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 144
Can ship immediately
Pricing:
- 1$7.18
- 50$7.18
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Boost, Flyback, Forward Converter
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8V ~ 14.5V
- Frequency - Switching:47kHz
- Duty Cycle (Max):50%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Through Hole

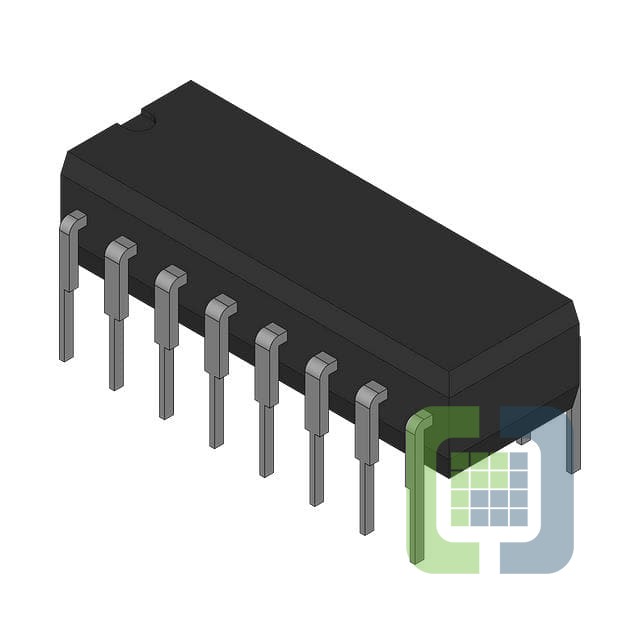

- Package / Case:16-DIP (0.300", 7.62mm)
- Supplier Device Package:16-PDIP
