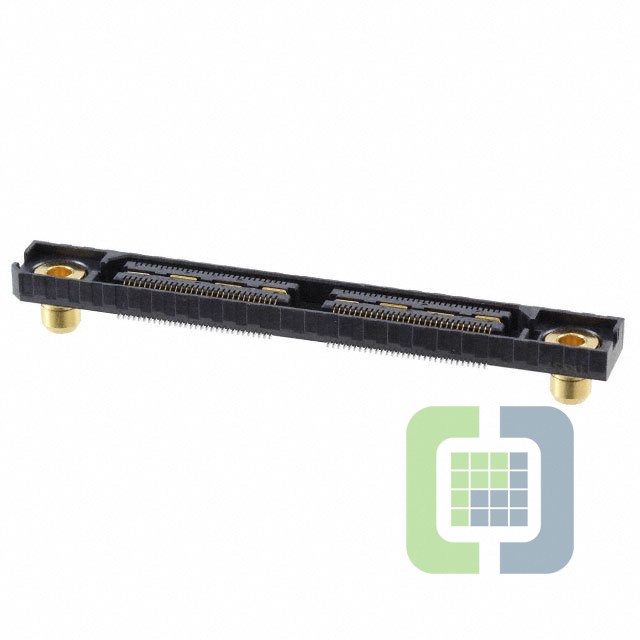

QSH-060-01-L-D-A-RT1
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QSH-060-01-L-D-A-RT1 Datasheet
-
ECAD Model
- Share
In Stock: 323
Can ship immediately
Pricing:
- 1$17.76
- 10$17.168
- 25$16.576
- 50$15.984
- 100$15.392
- 250$15.09603
- 500$14.8
Quote It
Technical Details
- Series:Q Strip® QSH
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:120
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane), Mounting Flange
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
- Height Above Board:0.128" (3.25mm)
