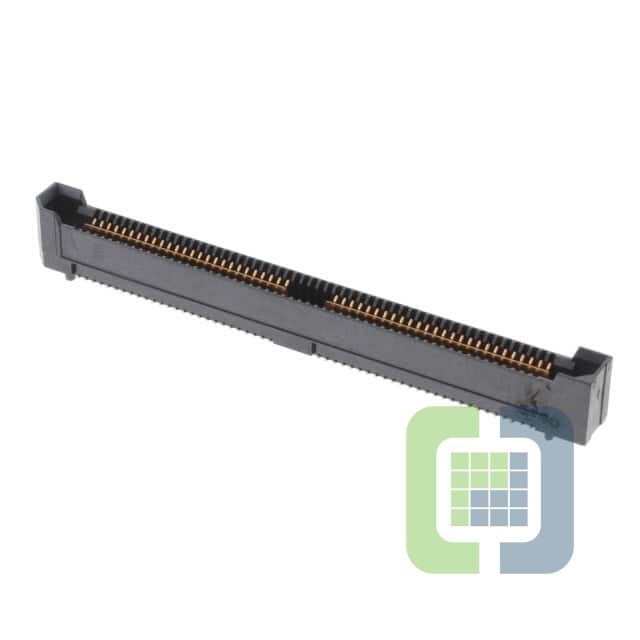

QRF8-052-05.0-L-D-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN ARRAY RCPT 104POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QRF8-052-05.0-L-D-A Datasheet
-
ECAD Model
- Share
In Stock: 236
Can ship immediately
Pricing:
- 1$16.51
- 10$15.53619
- 25$15.0991
- 50$14.07967
- 100$13.59416
- 250$12.62315
- 500$12.3804
- 1,000$11.89489
Quote It
Technical Details
- Series:QRate® QRF8
- Package:Tray
- Part Status:Active
- Connector Type:Array, Female Sockets
- Number of Positions:104
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:7mm, 10mm, 12mm
- Height Above Board:0.197" (5.00mm)
