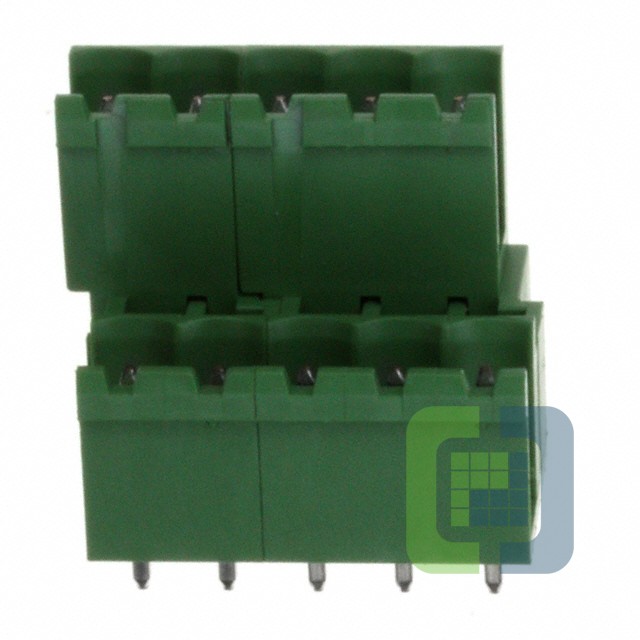

284056-5
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTERM BLOCK HDR 10POS VERT 5MM
- CategoryTerminal Blocks - Headers, Plugs and Sockets
- Datasheet 284056-5 Datasheet
-
ECAD Model
- Share
In Stock: 167
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Buchanan
- Package:Bulk
- Part Status:Active
- Type:Header, Male Pins, Shrouded (2 Side)
- Number of Positions:10
- Positions Per Level:5
- Number of Levels:2
- Pitch:0.197" (5.00mm)
- Header Orientation:Vertical
- Plug Wire Entry:-
- Termination Style:Solder
- Mounting Type:Through Hole
- Current - IEC:-
- Voltage - IEC:-
- Current - UL:12 A
- Voltage - UL:300 V
- Wire Gauge or Range - AWG:-
- Wire Gauge or Range - mm²:-
- Color:Green
- Operating Temperature:-40°C ~ 110°C
- Contact Mating Finish:Tin
- Features:Interlocking (Side)
