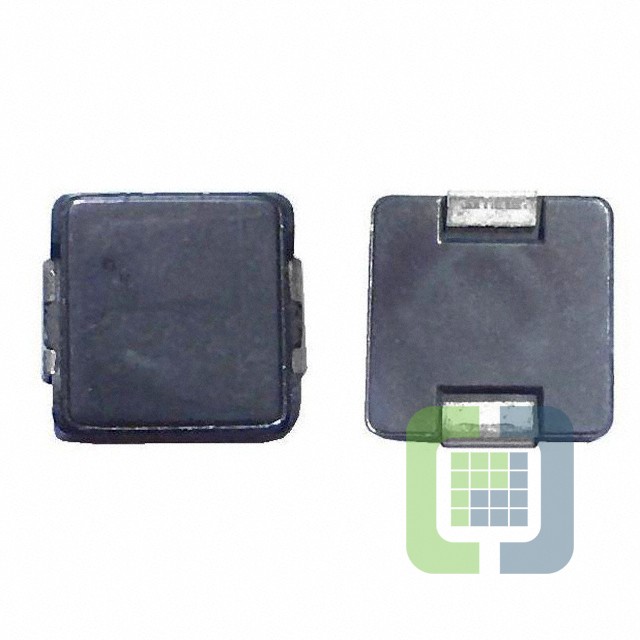

MPA7030-1R5-R
PowerStor (Eaton)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.5UH 9.2A 14.9 MOHM
- CategoryFixed Inductors
- Datasheet MPA7030-1R5-R Datasheet
-
ECAD Model
- Share
In Stock: 180
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:MPA7030
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:-
- Inductance:1.5 µH
- Tolerance:±20%
- Current Rating (Amps):9.2 A
- Current - Saturation (Isat):17.5A
- Shielding:Shielded
- DC Resistance (DCR):14.9mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:37MHz
- Ratings:-
- Operating Temperature:-55°C ~ 165°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.287" L x 0.268" W (7.30mm x 6.80mm)
- Height - Seated (Max):0.118" (3.00mm)
