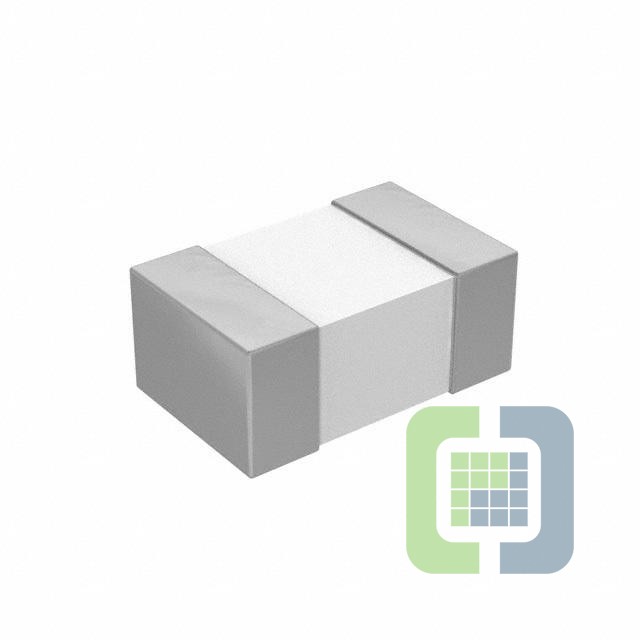

AIMC-0805-R18J-T
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 180NH 300MA 1.2 OHM
- CategoryFixed Inductors
- Datasheet AIMC-0805-R18J-T Datasheet
-
ECAD Model
- Share
In Stock: 185
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AIMC-0805
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Multilayer
- Material - Core:Ceramic
- Inductance:180 nH
- Tolerance:±5%
- Current Rating (Amps):300 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):1.2Ohm Max
- Q @ Freq:13 @ 50MHz
- Frequency - Self Resonant:400MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:50 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805 (2012 Metric)
- Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height - Seated (Max):0.041" (1.05mm)
