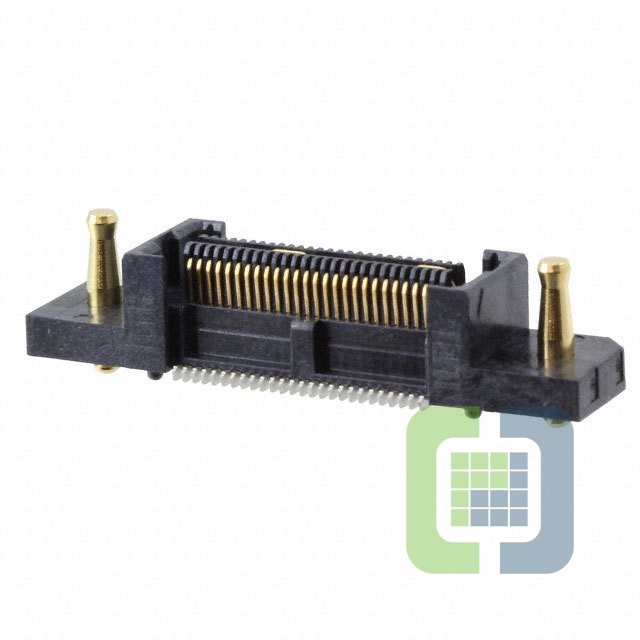

QFS-026-04.25-L-D-A-RT1
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 52POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QFS-026-04.25-L-D-A-RT1 Datasheet
-
ECAD Model
- Share
In Stock: 268
Can ship immediately
Pricing:
- 1$17.19
- 10$16.617
- 25$16.044
- 60$15.471
- 120$14.898
- 300$14.6115
- 540$14.325
Quote It
Technical Details
- Series:RF Q2™ QFS
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:54 (52 + 2 RF Jacks)
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane), RF Jacks (2)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:10mm, 11mm, 14mm
- Height Above Board:0.278" (7.06mm)
