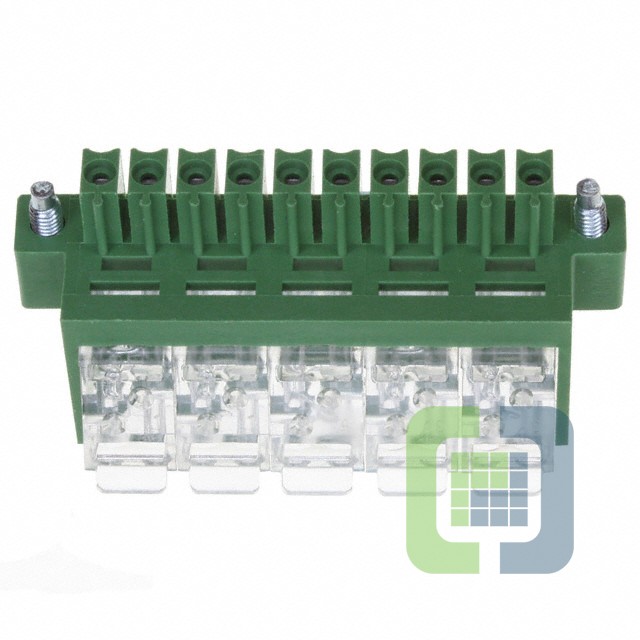

1-1776283-0

Technical Details

• Series:Buchanan
• Package:Bulk
• Part Status:Obsolete
• Type:Plug, Female Sockets
• Number of Positions:10
• Positions Per Level:10
• Number of Levels:1
• Pitch:0.138" (3.50mm)
• Header Orientation:-
• Plug Wire Entry:180°
• Termination Style:IDC

• Mounting Type:Free Hanging (In-Line)
• Current - IEC:-
• Voltage - IEC:-
• Current - UL:5 A
• Voltage - UL:250 V
• Wire Gauge or Range - AWG:22-24 AWG
• Wire Gauge or Range - mm²:0.2-0.4mm²
• Color:Green
• Operating Temperature:-40°C ~ 80°C
• Contact Mating Finish:Tin
• Features:Mating Flange
